Panatronix presents the NEW production of
ULTRASONIC GENERATORS
PEAK POWER, SCUDO, DUAL SWEEP, EVOLVER, PK.TRV

They power the Immersible Transducers and the tanks of the “UNIKA” line and supply the energy necessary to generate the phenomenon called “cavitation” which, combined with an appropriate chemical action of the aqueous detergent, removes impurities in every point of the objects immersed in the tank. ultrasonic cleaning.

panatronix generatore pk

SINGLE-PHASE
GENERATORS
PEAK POWER

Designed for washing cleaning pastes, heavy oils, greases and for the elimination of solder halos and tough oxides such as calamine.

Characterized by having a higher peak power than all other generators.

PEAK POWER FEATURES

Single phase power supply 230V-50÷60Hz

Dimensions (wxdxh mm) 335x590x220

Remote control of all functions

Weight 22 Kg

Frequency 25-40-100 KHz

Models from 750 up to 3.000/9.000 WATT peak

panatronix generatore scudo

THREE-PHASE
GENERATORS
SCUDO E DUAL SWEEP

Built to work 24 hours a day, the SCUDO Generators have incorporated a special heat exchanger that allows the cooling of all the electronic parts, protecting them from the vapors of the galvanic plants.

With the same power, they allow a much higher washing than traditional types.

SCUDO AND DUAL SWEEP FEATURES

Three-phase power supply 400V-50÷60Hz

Dimensions (wxdxh mm) 530x670x350

Remote control of all functions

Weight 40 Kg

Frequency 25-40-80-100 KHz o DUAL SWEEP

Models from 4.000 to 10.000/20.000 WATT peak to supply more Immersible Transducers.

panatronix evolver generator

SINGLE-PHASE OR THREE-PHASE
GENERATORS
EVOLVER

Latest generation, entirely digital.

They allow any type of adjustment for the most varied applications.

EVOLVER FEATURES

Three-phase power supply 400V-50÷60Hz

Dimensions (wxdxh mm) 530x690x350

Modbus RTU 485 remote control and remote assistance

Weight 40 Kg

Frequency 25-40-80-100 KHz

panatronix generatore pktrv

THREE-PHASE
GENERATORS
PK.TRV

Generators dedicated to the “UNIKA” line tanks.

They have multiple displays for reading and adjusting the ultrasound power, temperature and washing time.

PK.TRV FEATURES

Three-phase power supply 400V-50÷60Hz

Dimensions (wxdxh mm) 335x590x320

Weight 30 Kg

Frequency 25-40KHz

panatronix generatori moduli parallelabili

PARALLELABLE
MODULES

Panatronix generators can be stacked, work in groups and reach the necessary power. In the figure an example of 24000/48000 WATT peak generators composed of 3 modules of 8000/16000 WATT peak.

generatore scambiatore di calore

HEAT EXCHANGER
(Patented)

The special heat exchanger (patented) allows the cooling of all the electronic parts, protecting them from the vapors of the galvanic plants.

pulse&sweep AB

PULSE&SWEEP
ULTRASOUND

The benefits of the Pulse & Sweep command shown in the figure. An aluminum foil dipped in water for 10″
WITHOUT Pulse & Sweep ultrasound (A)
WITH Pulse & Sweep ultrasound (B).



High power, Reliability, Durability  Improved surface preparation

Connect to the respective Generators

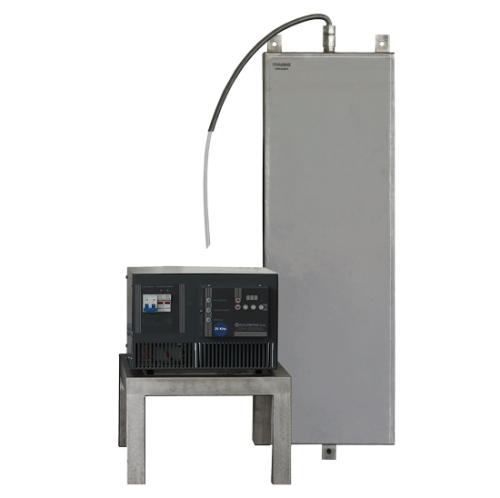

the Immersible Transducers
vibrate at ultrasonic frequency and
give rise to the "Cavitation" phenomenon

FREQUENCIES AND ULTRASONIC GENERATORS

When we talk about ultrasound we refer to frequencies above 20,000 Hz. These frequencies are regulated by the current generator which supplies the respective Immersible Transducers with the energy necessary to generate the phenomenon called “Cavitation“. The most suitable frequencies are chosen according to the materials to be treated and the type of contaminant to be removed. In ultrasonic cleaning the frequencies can vary from 20 to 200 KHz. Each ultrasonic generator is tuned and paired with one or more immersible transducers. This is important as a correct calibration allows the ultrasound to work optimally and maintaining high performance during washing.

7 Characteristics of
Ultrasonic Generators

PULSE
MODE

Ultrasound are rapidly pulsed to accelerate degassing and therefore increase washing. The command also allows significant energy savings.

SWEEP
MODE

The frequency is made to oscillate continuously around the base one to eliminate the harmful effects of the standing waves, making the washing uniform.

POWER
CONTROL

ON / OFF operating mode and local or remote power control via PLC.

FREQUENCY
ADJUSTMENT

The generator always automatically drives the transducer to the optimal frequency, however the temperature of the liquid and the pieces vary.

HIGH
PROTECTION

The electronic parts are protected from dust and vapors. Particularly suitable for harsh environments such as galvanic.

POWER
DISPLAY

The power is shown on the display on the front of the generator.

DISPLAY
TEMPERATURE AND WASHING TIME

Some models of ultrasonic generators have more displays in addition to the one dedicated to power. These are two displays that allow the reading and adjustment of the temperature and the washing time.
