Ultrasonic
Cleaning Tanks
Reliability, durability
Constant performance over time
Panatronix presents the NEWUltrasonic cleaning tanks "UNIKA" line
Ultrasonic cleaning tanks with high power, reliability and durability for users who require high performance.
Characteristics not comparable
with common ultrasound tanks

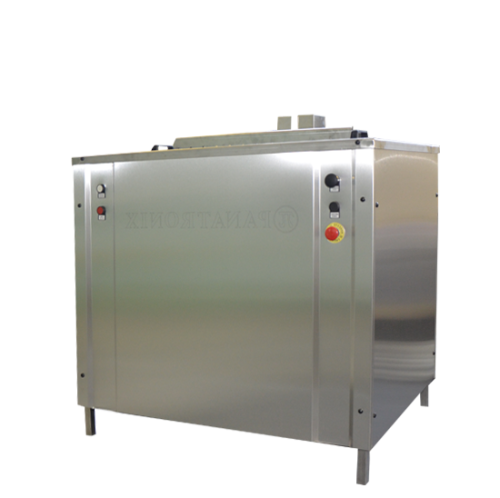

UNIKA ultrasound tanks
The ultrasonic tanks “UNIKA” line are entirely constructed with the special material, anti erosion and anti corrosion, higher than AISI 304 and
They can be used in high power in continuous mode (on average 10 years for 8 hours a day).
An advantage in terms of: saving of time and resistance over time.
The importance of safety
For safety reasons, the Generator, with its control panel, is provided as an independent unit.
A deliberate choice to avoid facing any damage resulting from probable risks that would occur with a built-in generator (wear and malfunction, caused by leaking of the detergent liquid, and possible blocking of the activity). Having a power generator positioned away from the tank not only guarantees greater safety but also a longer life.
Generators and Transducers
Powered and guided by the ultrasonic Generator, even the Immersible Transducers can be defined as independent units. Applied inside the UNIKA tanks (IMB), they are positioned on the wall or on the bottom, depending on the model (except for the THP 60 model built in a different way).
The THP 60 model is a very high power tank (greater than 30 w / l), performances that normal tanks do not reach.
4 Standard Models
ULTRASONIC CLDEANING TANKS
Internal dimensions (BxDxH) 565 x 325 x 355 mm
External dimensions (BxDxH) 765 x 540 x 500 mm
Capacity 60 L
Internal dimensions (BxDxH) 600 x 350 x 600 mm
External dimensions (BxDxH) 900 x 650 x 1000 mm
Capacity 120 L
Internal dimensions (BxDxH) 1000 x 350 x 600 mm
External dimensions (BxDxH) 1300 x 650 x 1000 mm
Capacity 200 L
Internal dimensions (BxDxH) 800 x 450 x 850 mm
External dimensions (BxDxH) 1100 x 850 x 1000 mm
Capacity 300 L
GENERAL Characteristics
- Components for industrial use
- TIG welding
- Insulation
- Level sensor to protect the ultrasounds and the heating element
- Thermostat probe for temperature control
- Lid stainless steel
- Discharge valve stainless steel
- Timer to program work time of ultrasounds
- Prepared for connection to the oil separator
- Prepared for the application of pneumatic handling of frames or baskets
SPECIAL Features
- Immersible Transducers for industrial use: ensure long lasting high power interchangeability
- Thickness tank 2,5 mm in special material
- Metallurgical junction of vibrating elements with guarantee life time against the detachment of them
- Heating by immersion stainless heating element
- Recess to protect the heating element against dirty
- Generator and control panel separated from the tank for safety reasons
- Warranty 2 years
- Panatronix assistance guaranteed
Attention
WE DO NOT PRODUCE NOR MARKET
ULTRASONIC CLEANING TANKS LESS THAN 60 L
NOR COMPACT TANKS
(generator and controls incorporated in the tank)
INTENDED FOR LIGHT OR OCCASIONAL USE
(jewelery, dental technicians, etc.).
Special ultrasonic cleaning tanks
Upon request, ultrasonic cleaning tanks of special dimensions are built in AISI 304, AISI 316 stainless steel or in anti-erosion and anti-corrosion material.
All ultrasonic cleaning tanks are equipped with an overflow for the skimming of floating impurities, insulation and heating by means of thermostated stainless steel resistors.
The ultrasonic clenaing tanks have a minimum capacity of 60 L and an unlimited maximum capacity thanks to the use of many immersible transducers.
Variety of optionals
The special ultrasonic cleaning tanks can have vertical or horizontal oscillatory movement of the frame holder bar (pre galvanic and galvanic).
In addition, it is possible to apply a pump / filter to the ultrasonic cleaning tanks that allows continuous recycling and cleaning of the detergent or an oil separator.
Together with the tank it is possible to request baskets which can be of various types and sizes.
